Selected for this product family
Compatible accessories
Compatible mounting, control, and installation accessories selected for this product family.
Quantity planning
Plan this project
Set the fixture quantity, then include only the optional project items you want reviewed or added.
Current product · included

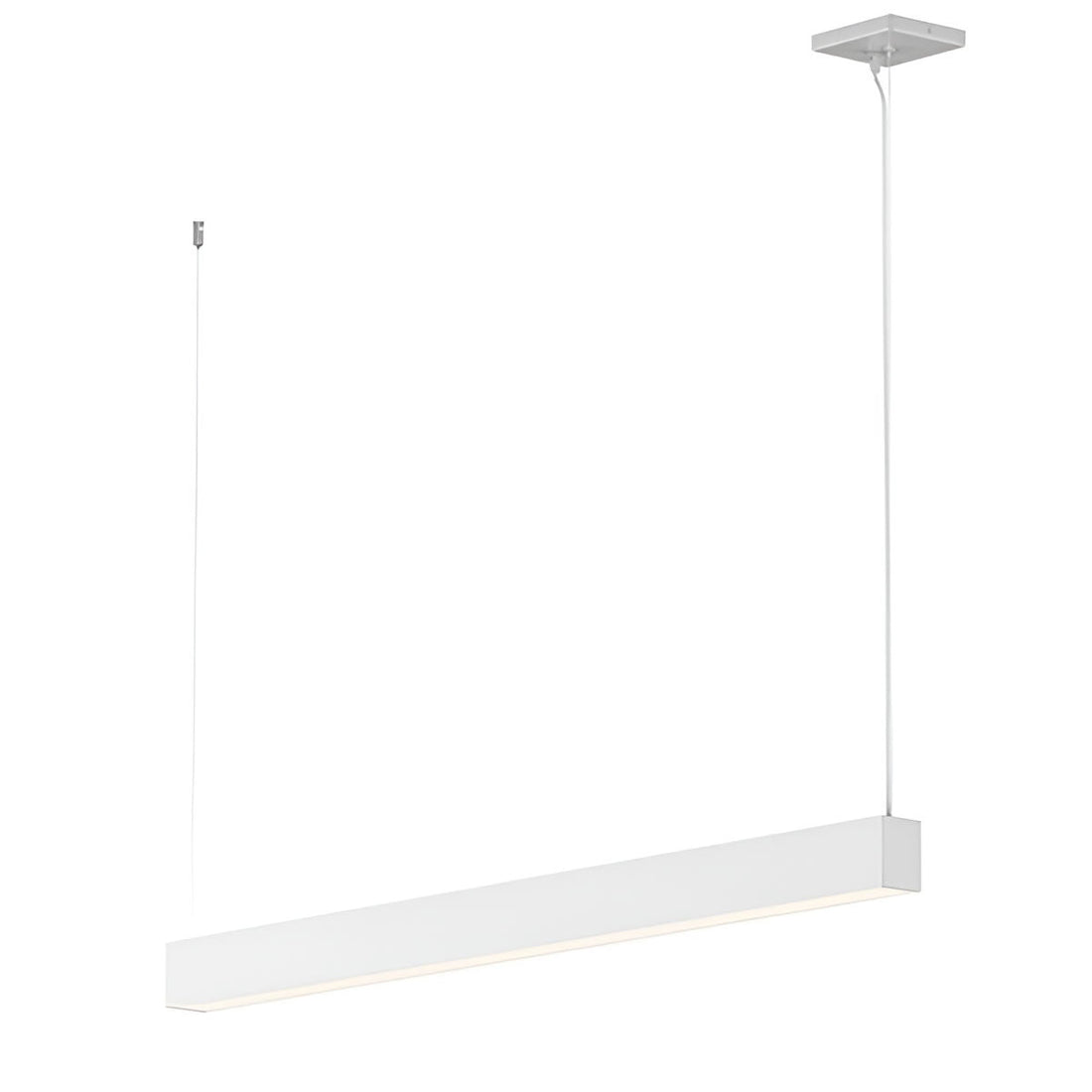

JEE LED Architectural Linear Fixture 50/35/25/15W Selectable 3CCT 120-277V
SKU DB77E-4-50W-A5C3
Project quantity
Optional project items
Nothing below is added automatically. These are not required components unless a product page explicitly says so elsewhere.
No reviewed optional project items are configured for this product.
Description
The JEE LED Architectural Linear Fixture 50/35/25/15W Selectable 3CCT 120-277V is a contractor-ready led architectural linear fixture for commercial lighting projects. Key ordering and submittal details are organized below for quick review.
- Brand: JEE
- Product Type: LED Architectural Linear Fixture
- SKU: DB77E-4-50W-A5C3
- Wattage: 50/35/25/15W Selectable
- Voltage: AC120-277V
- Color Temperature: 3500K/4000K/5000K
- Lumens: 6500 lm
- CRI: 80 CRI
- Dimming: 0-10V
- IP Rating: IP20
- Certifications: DLC / UL
- Warranty: 5 years
Recommended for commercial lighting projects. Verify compatibility, controls, mounting requirements, and project specifications before ordering.
Specifications
Wattage
50.0, 35.0, 25.0, 15.0
CCT Options
3500, 4000, 5000
Max Lumen Output
6500.0
CRI
80
Selected Variant
- Part #
- DB77E-4-50W-A5C3
Performance
- Wattage
- 50.0, 35.0, 25.0, 15.0
- Lumen Output
- 6500.0
- CCT Options
- 3500, 4000, 5000
- CRI
- 80
Electrical
- Input Voltage
- AC120-277V
- Voltage Range
- 120 - 277V
- Dimming Type
- 0-10V
Build & Ratings
- IP Rating
- IP20
- Warranty
- 5.0 Years
- DLC Listed
- Yes
Certification
Compliance & standards
This product lists the certifications, regulatory marks, and installation ratings below.
