Wattage
120.0, 100.0, 80.0
Quantity planning
Plan this project
Set the fixture quantity, then include only the optional project items you want reviewed or added.
Current product · included

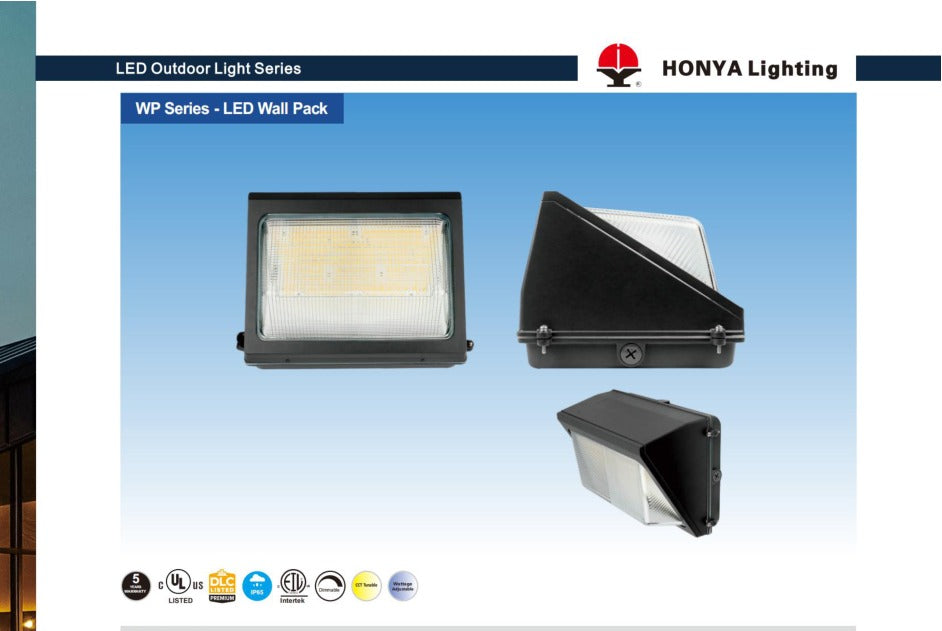

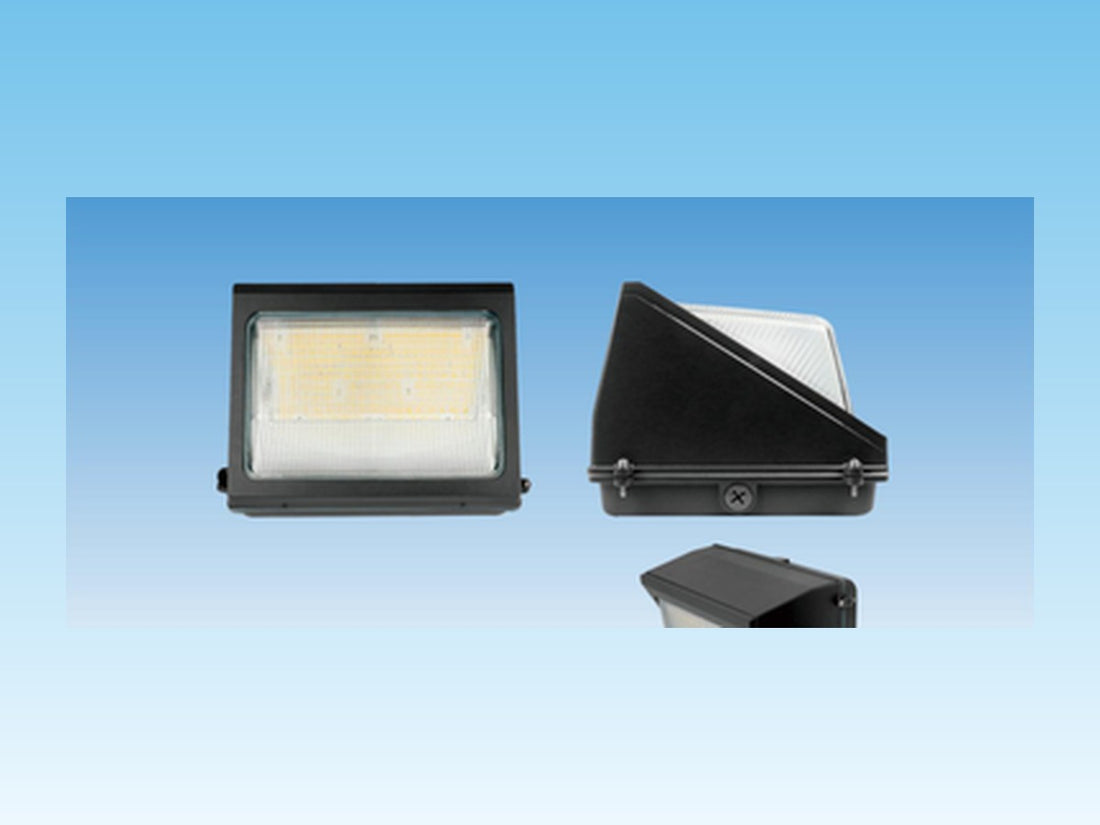

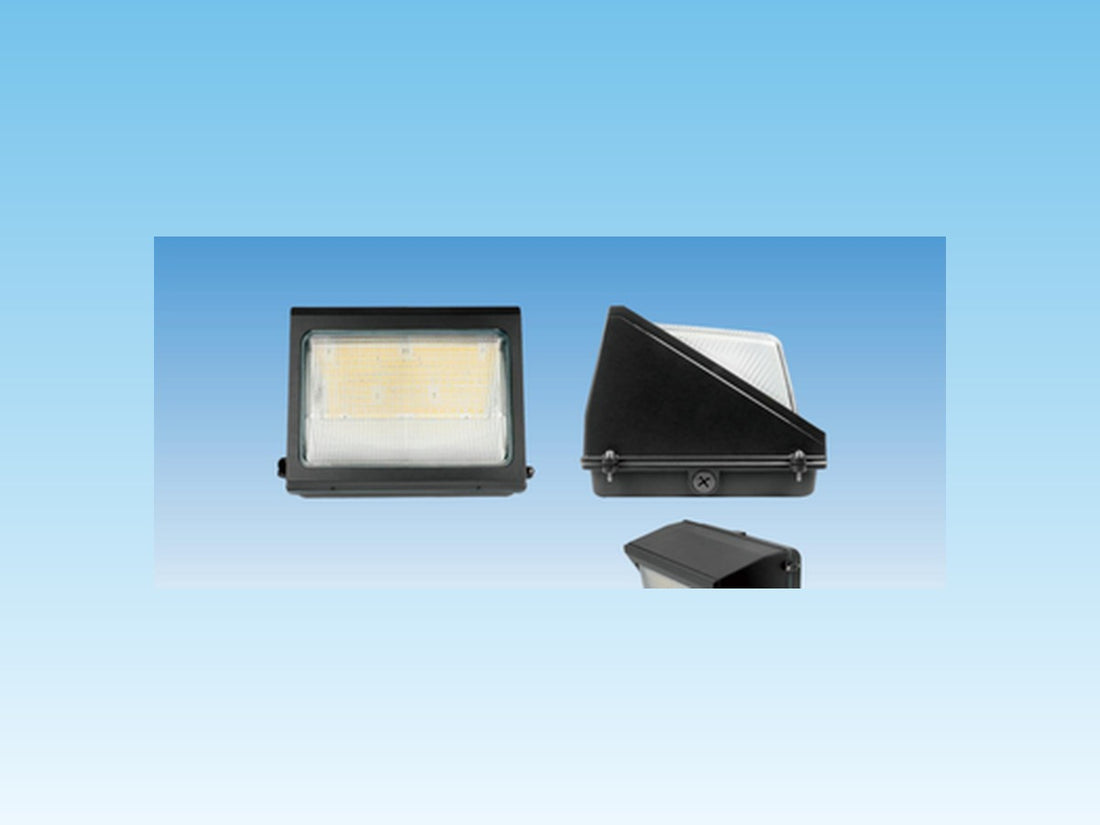

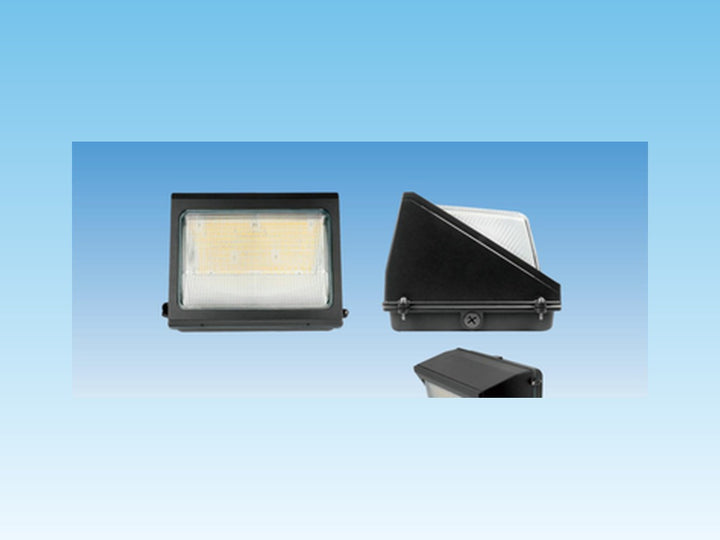

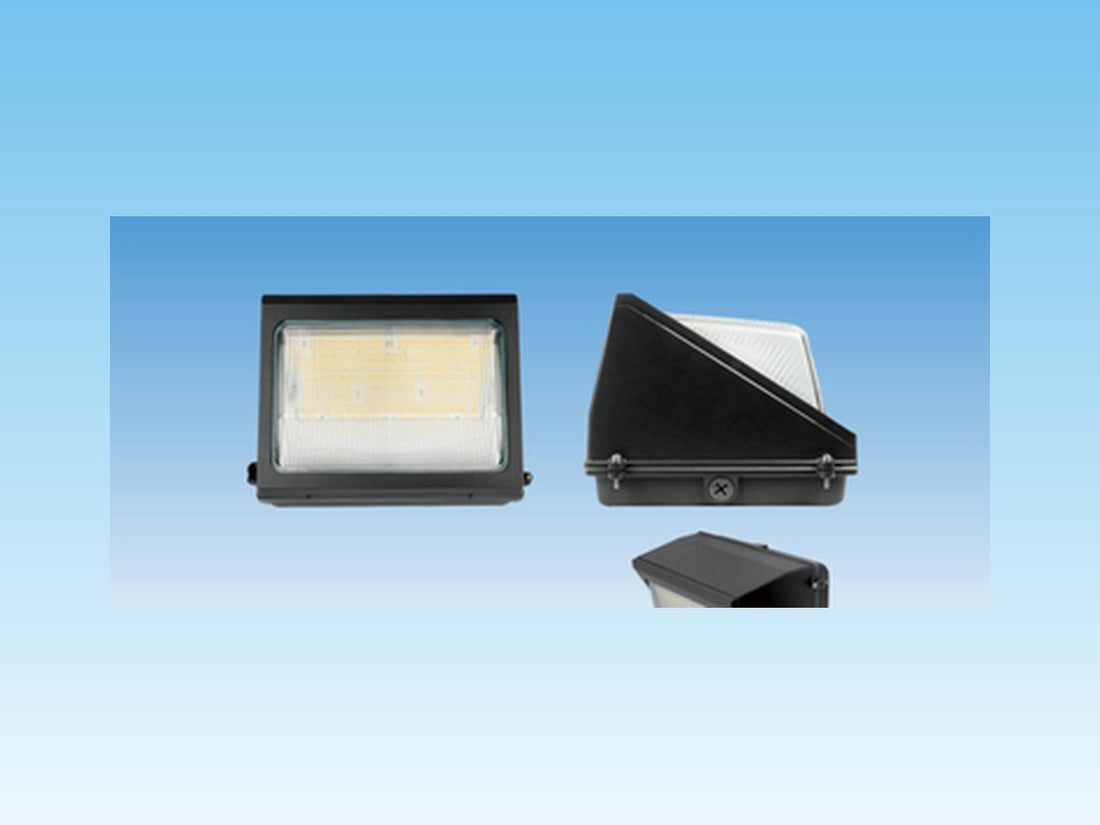

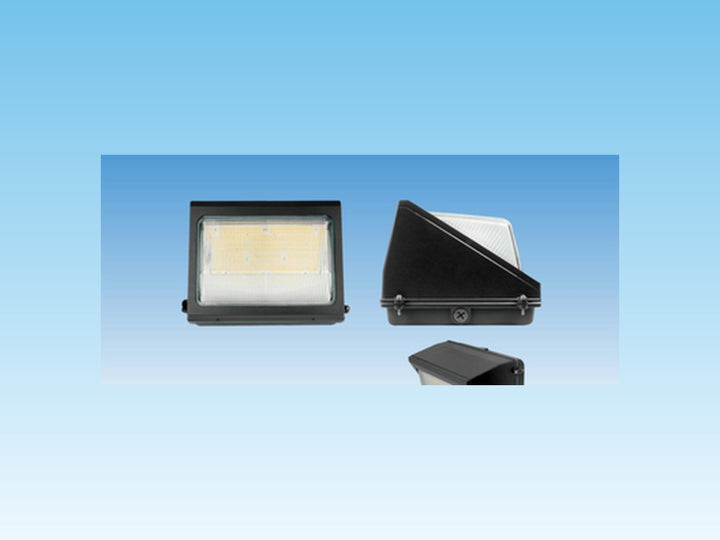

Honya LED Wall Pack 120/100/80W Selectable 3CCT
SKU HYA-WP-120/100/80W-H-3CCT
Project quantity
Optional project items
Nothing below is added automatically. These are not required components unless a product page explicitly says so elsewhere.
No reviewed optional project items are configured for this product.
Description
The Honya LED Wall Pack 120/100/80W Selectable 3CCT is a contractor-ready led wall pack for commercial exterior walls, entrances, and perimeter lighting. Key specs are organized below for quick submittal and ordering review.
- Brand: Honya
- Product Type: Wall Packs
- SKU: HYA-WP-120/100/80W-H-3CCT
- Model: HYA-WP-120/100/80W-H-3CCT
- Wattage: 120/100/80W
- CCT: 3000K/4000K/5000K
- Max Lumen Output: 17028 lm
- CRI: 80
- Beam Angle: 95°
- IP Rating: IP65
- Rated Life: 50000 hours
- Housing Material: Die Cast Aluminum
- Lens Material: Glass
- Certifications: DLC; cULus
- DLC Listed: Yes
- Application: commercial exterior walls, entrances, and perimeter lighting
- Wattage Selection: 120W / 100W / 80W
Specifications
CCT Options
3000, 4000, 5000
Max Lumen Output
17028
CRI
80
Selected Variant
- Part #
- HYA-WP-120/100/80W-H-3CCT
Performance
- Wattage
- 120.0, 100.0, 80.0
- Lumen Output
- 17028
- CCT Options
- 3000, 4000, 5000
- CRI
- 80
- Beam Angle
- 95°
- Rated Life
- 50000
Build & Ratings
- IP Rating
- IP65
- Housing Material
- Die Cast Aluminum
- Lens Material
- Glass
- DLC Listed
- Yes
Certification
Compliance & standards
This product lists the certifications, regulatory marks, and installation ratings below.
cULus
Documents
PDF 1
