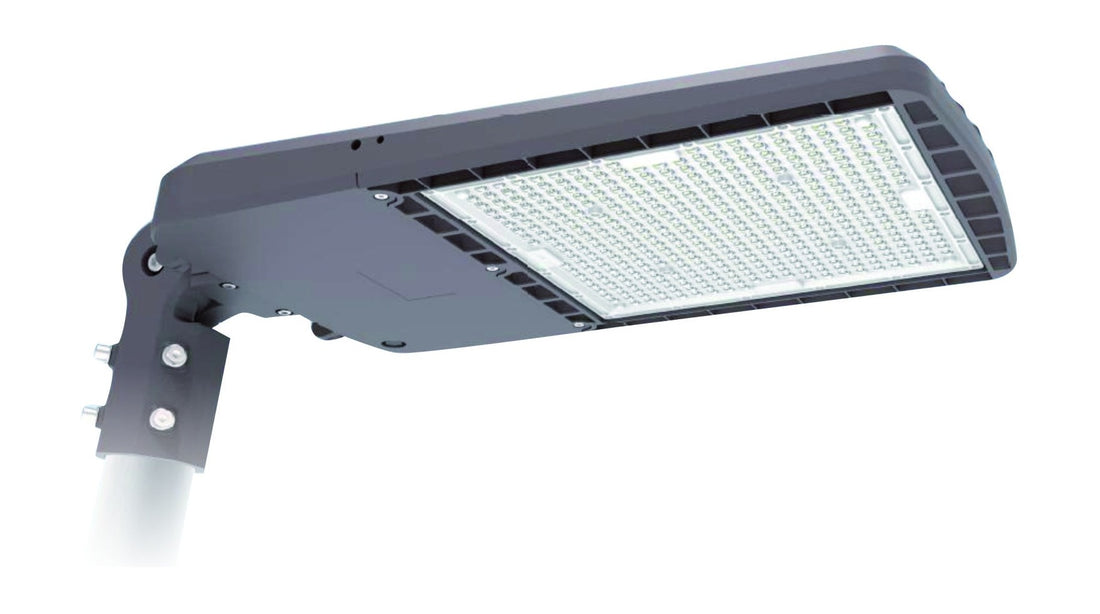

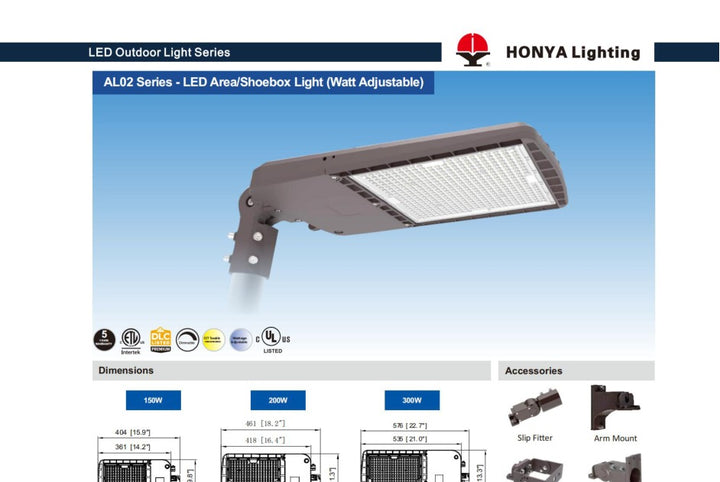

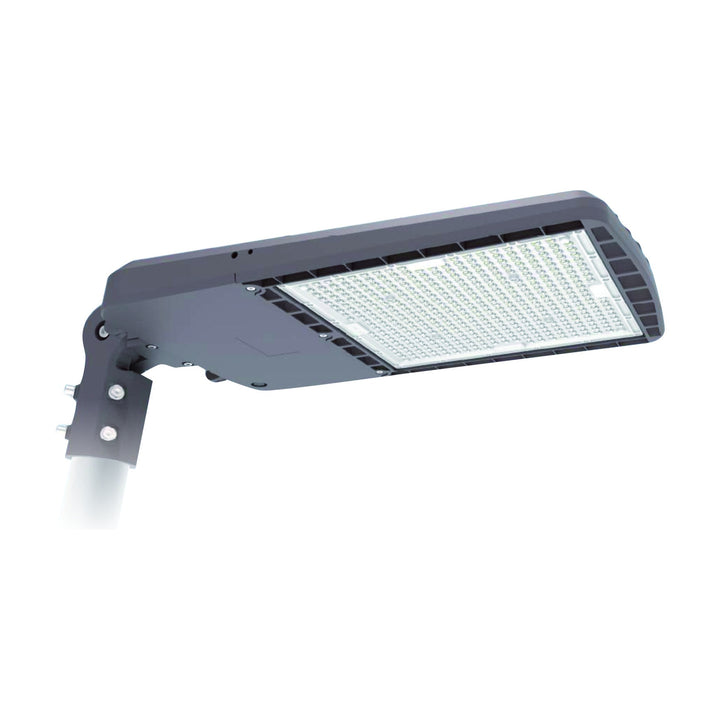

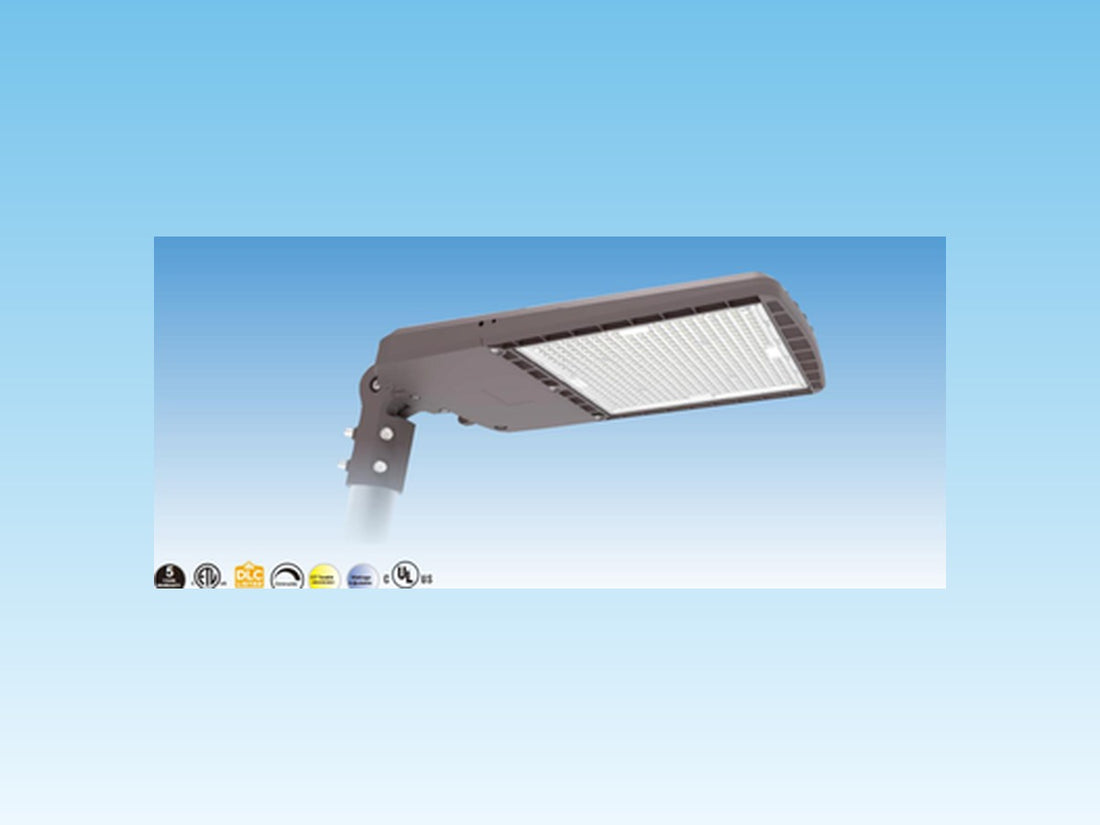

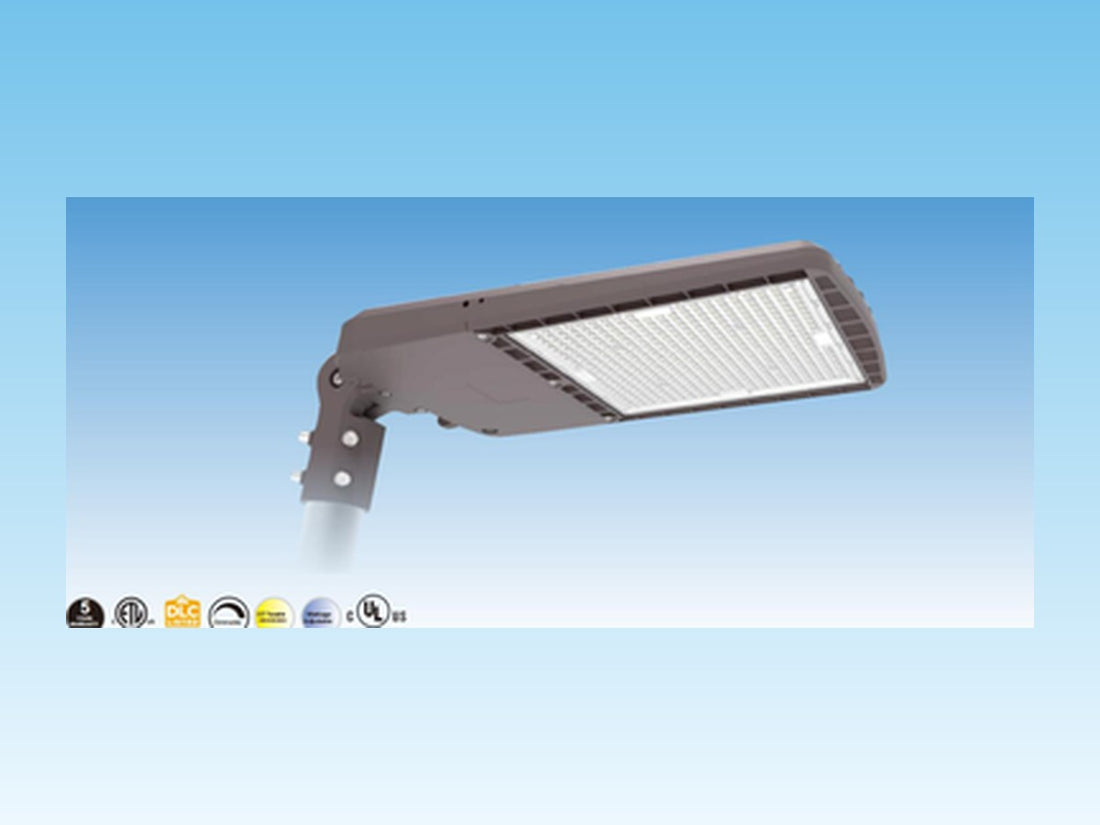

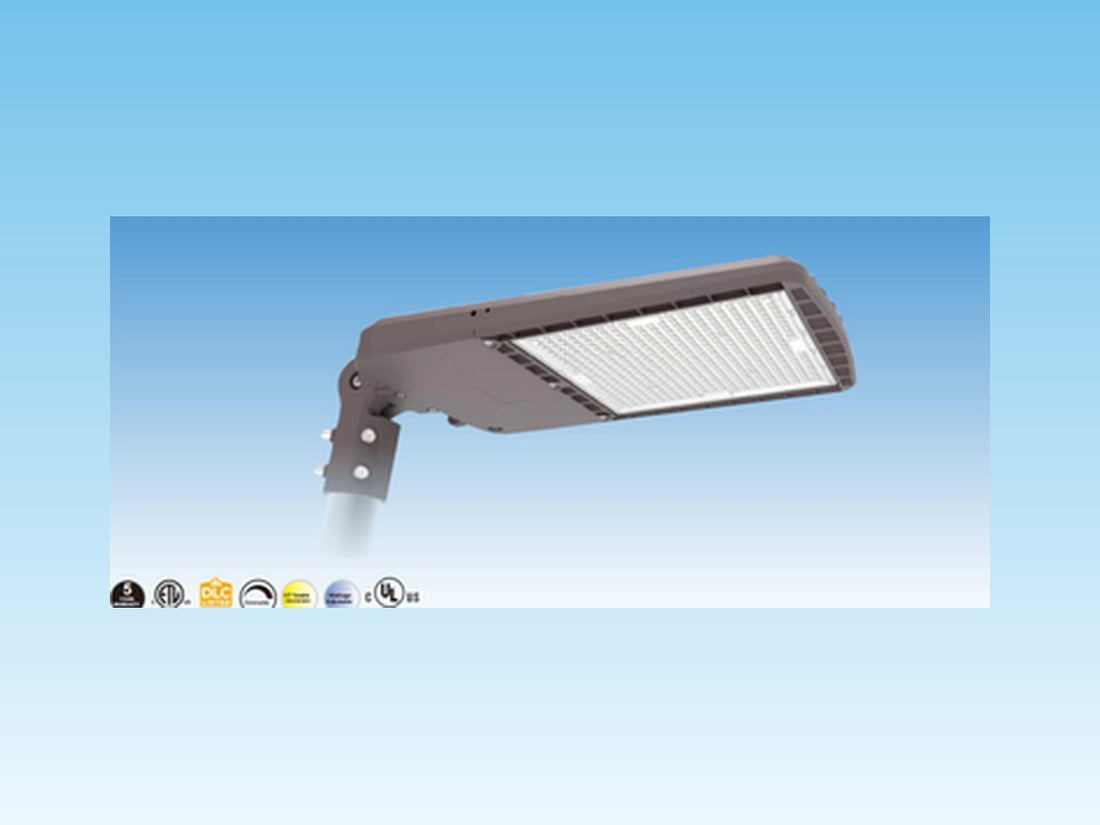

Honya LED Area/Shoebox Light 100/150/200W Selectable 5000K 120-277V/277-480V
$150.00
Add-ons
Compatible accessories
Common sensors, remotes, brackets, and install pieces for this type of product.
Description
The Honya LED Area/Shoebox Light 100/150/200W Selectable 5000K 120-277V/277-480V is a contractor-ready led area light for parking lots, site lighting, and commercial area illumination. Key specs are organized below for quick submittal and ordering review.
- Brand: Honya
- Product Type: Area Lights
- SKU: HYA-AL02-200W-H3-50K-TW
- Model: HYA-AL02-200W-H3-50K-TW
- Wattage: 100/150/200W
- Input Voltage: AC120-277V; AC277-480V
- Voltage Range: 120-277V/277-480V
- CCT: 5000K
- Max Lumen Output: 28200 lm
- CRI: 80
- Dimming: 0-10V
- Power Factor: ≥0.9
- IP Rating: IP65
- Rated Life: 50000 hours
- Warranty: 5 years
- Housing Material: Aluminum
- Certifications: DLC Premium; UL
- DLC Listed: Yes
- Application: parking lots, site lighting, and commercial area illumination
- Form Factor: Area/shoebox light
- Wattage Selection: 100W / 150W / 200W
Specifications
Wattage
100.0, 150.0, 200.0
CCT Options
5000
Max Lumen Output
28200
CRI
80
Selected Variant
- Part #
- HYA-AL02-200W-H3-50K-TW
Performance
- Wattage
- 100.0, 150.0, 200.0
- Lumen Output
- 28200
- CCT Options
- 5000
- CRI
- 80
- Rated Life
- 50000
Electrical
- Input Voltage
- AC120-277V; AC277-480V
- Voltage Range
- 120 - 480V
- Dimming Type
- 0-10V
- Power Factor
- ≥0.9
Build & Ratings
- IP Rating
- IP65
- Housing Material
- Aluminum
- Warranty
- 5 Years
- DLC Listed
- Yes
Certification
Compliance & standards
This product lists the certifications, regulatory marks, and installation ratings below.
DLC Premium
