LED Panels vs. Troffers: 7 Retrofit Checks Before You Order

A commercial ceiling retrofit schedule that says only "40 x 2x4 LED" is not ready to order. It leaves out the ceiling, the opening, the space above it, the mounting method, the light output, the voltage, and the controls. Any one of those details can change the fixture choice.

That is why an LED panel and an LED troffer can appear to be substitutes on a product page but behave very differently in a retrofit. The right choice starts in the ceiling, not in the thumbnail.

This guide covers the information to collect before comparing LED panels and troffers, releasing a purchase order, or asking for project pricing. It is buyer-preparation guidance. The project's qualified trades and design team still need to settle electrical, structural-support, photometric, emergency, and code requirements.

Panel or troffer? The short answer

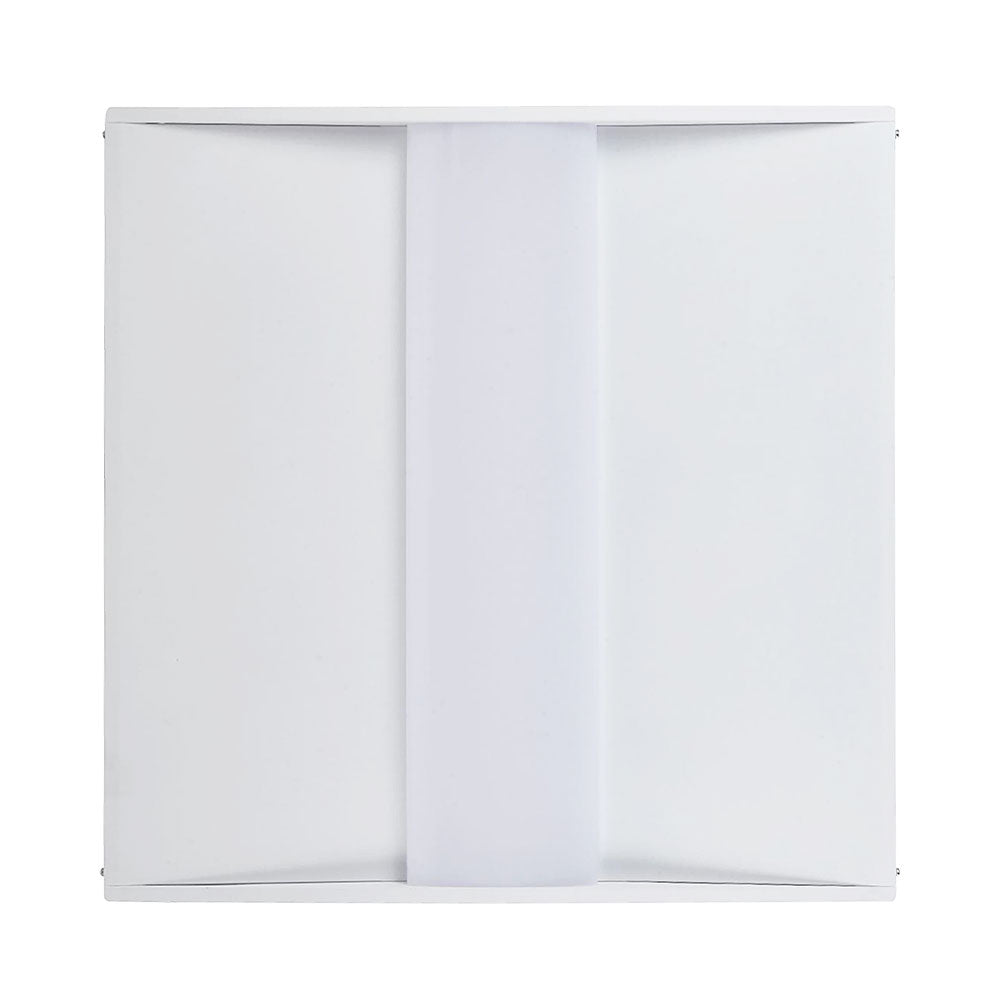

An LED panel, often called a flat panel, usually has a thin body and a broad, luminous face. A troffer usually has more housing depth and a more defined optical area, such as a lens, center element, basket, or reflector. Catalog naming is not perfectly consistent, so the exact submittal matters more than the family name.

For a standard T-grid with limited clear space above it, a panel is often the first type to check. For a project that needs a deeper recessed form, a particular distribution, or a relight kit that keeps a usable fluorescent housing in place, a troffer solution may be the better starting point. Neither answer is automatic.

This table narrows the first look. The seven checks below decide whether a specific fixture belongs on the quote.

1. Decide what is staying in the ceiling

A fluorescent troffer upgrade can take three different paths: replace the lamps, install a certified conversion kit in the existing housing, or remove the old luminaire and install a new one. "LED retrofit" is used for all three in everyday conversation, but the labor, parts, access, and product documents are different.

If the old housing is bent, rusted, discolored, difficult to service, or poorly suited to the new lighting goal, keeping it may not be useful. If the housing is sound and the project is considering a conversion kit, record the manufacturer, model, size, lamp arrangement, and interior condition. A kit has to be intended for the host luminaire described in its instructions.

A complete lay-in panel is normally a new luminaire, not a panel that gets placed inside an old fluorescent box. Do not build a quote until the scope says which path the project team has selected.

For the first survey, photograph:

• the full fixture in the ceiling;
• the label and any readable model information;
• the lens or door open and closed, when qualified personnel can access it safely;
• damaged housings, stained tiles, or unusual framing;
• one wider view that shows the grid and nearby building systems.

2. Prove the ceiling type and opening

"2x2" and "2x4" are nominal catalog sizes. They help find a product family, but they do not prove the body will clear the opening or the mounting detail will work.

Record whether each area has a suspended T-grid, drywall or another hard-lid ceiling, an exposed structure, or a specialty ceiling system. Then measure the actual fixture body, the opening, and the grid module. Buildings that have been remodeled can contain more than one grid or ceiling condition on the same floor.

Do not convert a whole count from one sample room. Check enough locations to catch differences between offices, corridors, conference rooms, additions, and back-of-house spaces.

The choice between 2x2 and 2x4 is not a brightness decision by itself. Either size can be sold in multiple outputs. Start with the ceiling layout and existing opening, then compare the delivered lumens and distribution of the exact candidate.

3. Look above the tile

A thin panel can solve a depth problem, but its face is not the whole installation. The driver, junction box, wiring, support, and service path still need somewhere to go. Some products are accessed from above; others use a remote or attached driver enclosure. Read the exact installation sheet before treating a shallow fixture as a fit.

At the tightest location, record:

• clear depth above the ceiling;
• ductwork, piping, cable tray, sprinklers, insulation, or framing near the opening;
• where the driver and junction box would sit;
• how a tile and the old fixture can be removed;
• how the new fixture can be brought into the opening;
• the access needed for future service.

Access can matter as much as depth. A full-luminaire replacement may disturb ceiling tiles or require work above the grid. In occupied offices, clinics, schools, or finished spaces, dust control, furniture moves, room shutdowns, and allowed work hours belong in the project scope before bids are compared.

4. Match the mounting method and accessories

A recessed lay-in fixture, a surface-mounted fixture, and a suspended fixture are three separate mounting conditions. Some panel families support more than one through model-specific hardware. Others do not.

If the ceiling is not a standard lay-in grid, find the exact mounting method in the fixture documents. Michelon's panel mounting kits are a useful accessory path, but matching a kit's nominal size to a panel's nominal size is not enough. Confirm the fixture series, kit part number, dimensions, driver clearance, and instructions.

The same rule applies to flange kits, suspension cables, seismic clips, retrofit doors, emergency components, and sensor accessories: use only a combination documented for the exact product and project condition.

Leave attachment, independent support, seismic restraint, fire-rated assembly, and local code decisions to the project's qualified trade or design team. For purchasing, the useful job is to flag those requirements early and keep the approved accessory part numbers on the fixture schedule.

5. Compare the light in the room

Wattage tells you electrical input. Lumens tell you total light output. Neither number by itself shows how the room will look.

Two fixtures with the same lumen rating can put light on work surfaces, walls, and screens differently because of their optics and distribution. A broad panel face may look different from a recessed center element even when the product labels appear close. Lens brightness, glare, ceiling height, spacing, surface reflectance, and the condition of the old system all affect the result.

For each exact catalog number, compare:

• delivered lumens and input watts;
• the photometric file or report;
• distribution and lens or diffuser;
• CCT and CRI;
• factory-set or selectable output and color settings;
• dimming performance when controls are part of the job.

There is no single lumen number that replaces every 2x4 fluorescent troffer. The old lamp count, ballast, lens condition, layout, and intended light level all change the comparison. A one-for-one fixture count is a survey baseline, not a photometric guarantee.

For a small like-for-like space, a sample can expose objectionable brightness, color, dimming behavior, or ceiling appearance before the full order ships. For a layout change, a target light level, screen-heavy work, or a space where poor lighting has already drawn complaints, request a qualified lighting layout or project review.

6. Confirm voltage, controls, and emergency scope

Read the input range on the exact fixture, then match it to the verified project voltage. Do the same for the driver and controls. A listing under the same panel or troffer family can still have different voltage, dimming, sensor, or selectable-output configurations.

For 0-10V work, collect the driver type, minimum dim level, off behavior, control device, existing control wiring, zone count, and sensor requirements. Michelon's 0-10V dimming guide explains why a powered fixture can still fail to dim correctly when the driver, control, or wiring plan does not match.

Emergency operation also belongs on the schedule before a fixture is chosen. Mark which locations are on an emergency circuit or require a battery, transfer device, or other project-specified operation. Then confirm the exact luminaire and emergency component combination with the manufacturer documents and the project team.

Do not use a catalog accessory as proof that the finished emergency or controls design is approved. The designer, qualified installer, commissioning team, and authority having jurisdiction make those determinations for the actual project.

7. Build the quote room by room

One representative fixture rarely describes an entire building. A corridor may share a nominal size with an office while using a different output, control zone, emergency designation, or ceiling condition.

Use one line per distinct fixture condition:

Unknown is a useful answer. It tells the contractor, supplier, or designer what still has to be checked. A guessed voltage, opening, or accessory part number looks complete on a spreadsheet and causes trouble later.

Once the schedule is assembled, compare exact products and keep each selected setting or accessory on the same line as its fixture. For a larger quantity or a multi-room package, send the schedule through the Custom Pricing Program with the product links, SKUs, photos, quantities, and any required alternates.

The goal of the first quote is not to hide every open question. It is to make those questions visible before the order is released.
