Wattage
15.0
Quantity planning
Plan this project
Set the fixture quantity, then include only the optional project items you want reviewed or added.
Current product · included

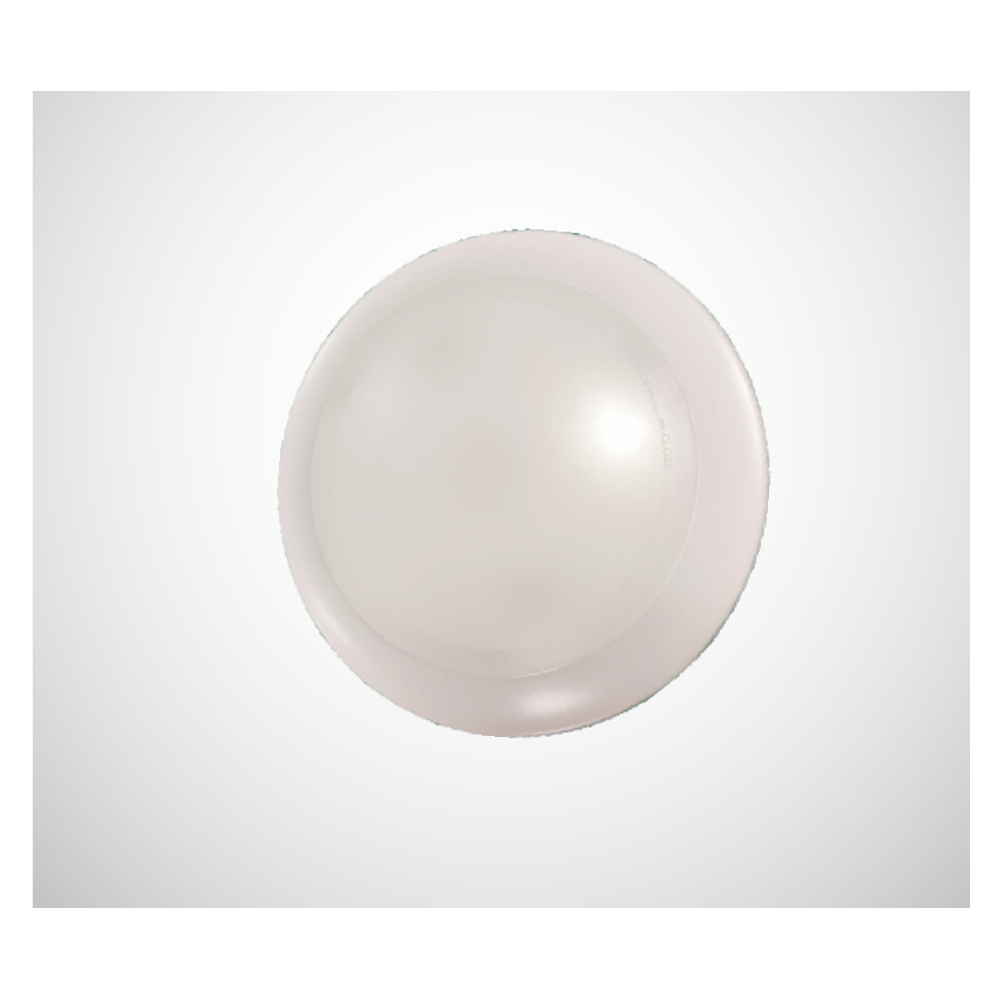

Honya LED Disk Light 6 Inch 15W 3CCT 120V White
SKU HY-DSL-R6-15W-3CCT
Project quantity
Optional project items
Nothing below is added automatically. These are not required components unless a product page explicitly says so elsewhere.
No reviewed optional project items are configured for this product.
Description
Honya 6-inch white LED disk light for direct wiring to a 4-inch or 6-inch junction box. Its low-profile design requires no recessed housing and provides selectable 3000K, 4000K, or 5000K light.
Specifications
- Model: HY-DSL-R6-15W-3CCT
- Size: 6-inch round
- Wattage: 15W
- Light output: 1,000 lumens
- Color temperature: 3000K/4000K/5000K selectable
- Input: 120V AC, 60Hz
- Dimming: TRIAC
- CRI: >80
- Power factor: 0.95
- Beam angle: 120°
- Dimensions: 7.28-inch diameter × 0.98-inch depth
- Installation: Direct-wire to a 4-inch or 6-inch junction box; no recessed housing required
- Environment: IP20; suitable for damp locations
- Operating temperature: -4°F to 105°F
- Finish: White
Specifications
CCT Options
3000, 4000, 5000
Max Lumen Output
1,000 lm
CRI
80
Selected Variant
- Part #
- HY-DSL-R6-15W-3CCT
Performance
- Wattage
- 15.0
- Lumen Output
- 1,000 lm
- CCT Options
- 3000, 4000, 5000
- CRI
- 80
- Beam Angle
- 120°
Electrical
- Input Voltage
- 120V AC
- Voltage Range
- 120V
- Dimming Type
- TRIAC
- Power Factor
- 0.95
Build & Ratings
- IP Rating
- IP20
Certification
No certification data available for this product.
