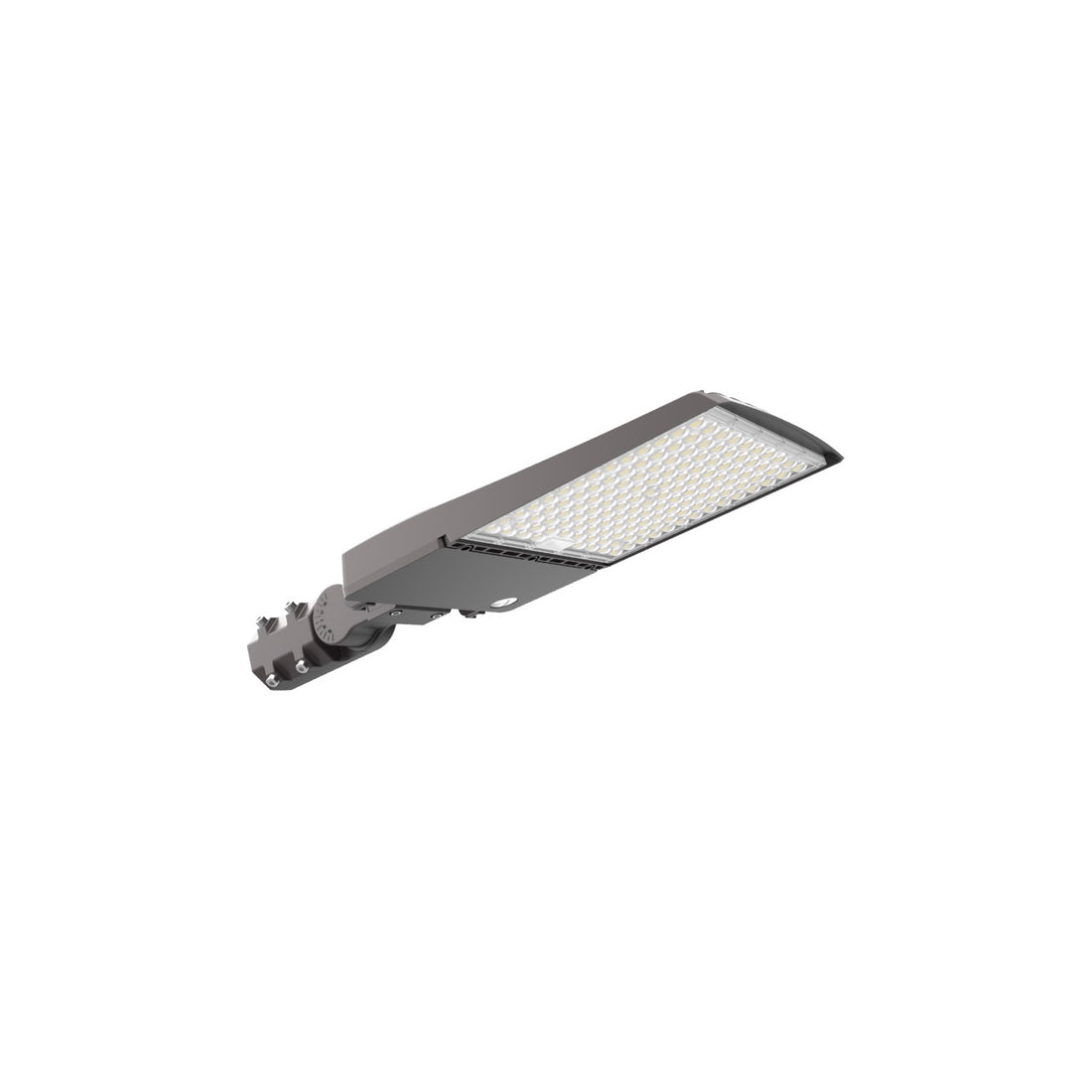

JEE AR09 family exterior reference; shown mounting bracket is not included
DLC UL

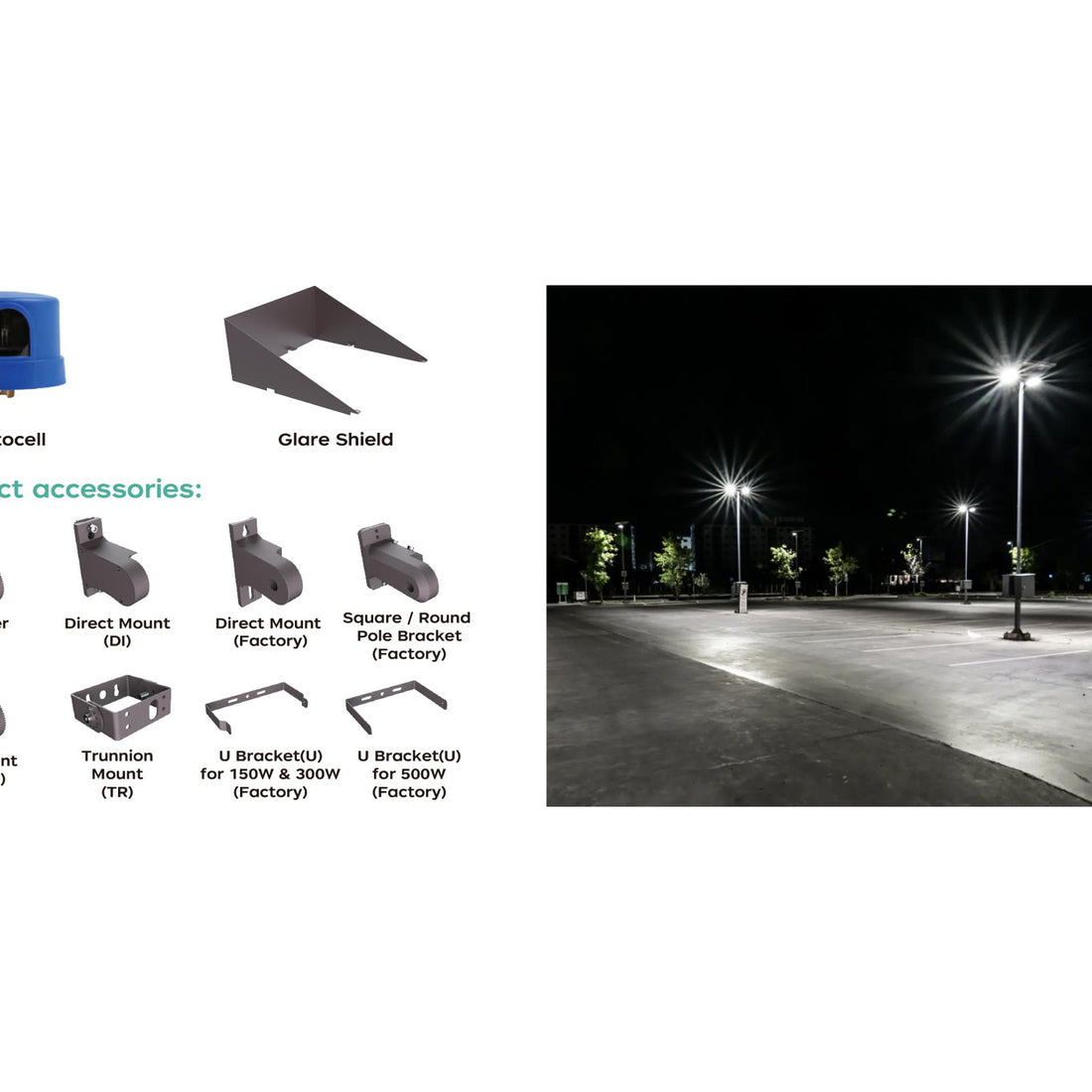

JEE AR09 accessory and application reference collage; source clips some illustrated accessories; optional accessories are not included
DLC UL
JEE AR09 150W/300W family reference illustration with optional slipfitter mount; selected configuration and supplied hardware are not established
DLC UL
Manufacturer AR09 300-class exterior reference showing an optional trunnion mounting example. Exact voltage, wattage setting, lens, photocell, revision and included hardware are not established.
DLC UL
Manufacturer AR09 300-class exterior reference showing housing/fin geometry. Exact voltage, wattage setting, lens, photocell, revision and included hardware are not established.
DLC UL
Manufacturer AR09 300-class exterior reference showing an optional trunnion mounting example. Exact voltage, wattage setting, lens, photocell, revision and included hardware are not established.
DLC UL
Manufacturer AR09 300-class exterior reference showing an optional trunnion mounting example. Exact voltage, wattage setting, lens, photocell, revision and included hardware are not established.
DLC UL
Manufacturer AR09 300-class exterior reference showing housing/fin geometry. Exact voltage, wattage setting, lens, photocell, revision and included hardware are not established.
DLC UL

Compare similar models before buying

Same family, different wattage, voltage, mounting, sensor, or lens option.

Current product
JEE AR09 family exterior reference; shown mounting bracket is not included

JEE LED Area Light 300/240/200W Selectable 3CCT L/H Voltage Options AR09

J-AR09-300/240/200W-H-PCX-3CCT-T3 with photocell base

300/240/200W3CCT120-277Vpole/area-light mount; photocell; BLE
Show full comparison
Model SKU Watts Size Voltage CCT Finish Features Action
JEE LED Area Light 100/120/150W Selectable 3CCT L/H Voltage Options AR09 J-AR09-150/120/100W-H-PC-3CCT-T3 with photocell base 100/120/150W; 150/120/100W 120-277V 3CCT pole/area-light mount; photocell; BLE
View product Request pricing
Current productJEE LED Area Light 300/240/200W Selectable 3CCT L/H Voltage Options AR09 J-AR09-300/240/200W-H-PCX-3CCT-T3 with photocell base 300/240/200W 120-277V 3CCT pole/area-light mount; photocell; BLE
View product Request pricing
JEE LED Area Light 300/350/400/450/500W Selectable 3CCT 120-277V AR09 Photocell Base J-AR09-500W-L-DW5C3T3 with photocell base 300/350/400/450/500W; 500W 120-277V 3CCT pole/area-light mount; photocell; BLE
View product Request pricing

JEE LED Area Light 300/240/200W Selectable 3CCT L/H Voltage Options AR09

JEE LED Area Light 300/240/200W Selectable 3CCT L/H Voltage Options AR09

Output & fit

Confirm the essentials before selecting quantity.

Area lightWattage selectableCCT selectable
Lumens 51000 lm Wattage 300 / 240 / 200W CCT 3000 / 4000 / 5000K
Voltage
L models: AC120-277V / H models: AC277-480V
CRI
80
Dimming
0-10V
IP
IP65
Certs
DLC,UL

Brand: JEE Lighting

Part #:J-AR09-300/240/200W-H-PCX-3CCT-T3 with photocell base

Standard price

$247.75
$247.75
Sale Sold out
Shipping calculated at checkout.

Free FedEx shipping over $500 on eligible orders; exclusions apply.

Sales tax applied where required. Tax-exempt? Contact us before ordering. For more information, see our Tax Exemption page.

Configuration
Request custom pricing

In stock

Estimated contiguous US delivery: 3-7 business days after processing.

Free FedEx shipping over $500 on eligible orders. Shipping is currently unavailable to Alaska and Hawaii. Products over 8 feet and freight items require a separate quote.

Secure Checkout American Express Apple Pay Diners ClubDiscoverGoogle Pay Mastercard PayPalShop Pay Visa

256-bit SSL encrypted

Manufacturer warranty details available on request

30-Day Returns

Need to start a return or have a warranty question?

Contact Support Contact Us Email
View full refund & return policy →

Compare similar models before buying

Same family, different wattage, voltage, mounting, sensor, or lens option.

Current product
JEE AR09 family exterior reference; shown mounting bracket is not included

JEE LED Area Light 300/240/200W Selectable 3CCT L/H Voltage Options AR09

J-AR09-300/240/200W-H-PCX-3CCT-T3 with photocell base

300/240/200W3CCT120-277Vpole/area-light mount; photocell; BLE
Show full comparison
Model SKU Watts Size Voltage CCT Finish Features Action
JEE LED Area Light 100/120/150W Selectable 3CCT L/H Voltage Options AR09 J-AR09-150/120/100W-H-PC-3CCT-T3 with photocell base 100/120/150W; 150/120/100W 120-277V 3CCT pole/area-light mount; photocell; BLE
View product Request pricing
Current productJEE LED Area Light 300/240/200W Selectable 3CCT L/H Voltage Options AR09 J-AR09-300/240/200W-H-PCX-3CCT-T3 with photocell base 300/240/200W 120-277V 3CCT pole/area-light mount; photocell; BLE
View product Request pricing
JEE LED Area Light 300/350/400/450/500W Selectable 3CCT 120-277V AR09 Photocell Base J-AR09-500W-L-DW5C3T3 with photocell base 300/350/400/450/500W; 500W 120-277V 3CCT pole/area-light mount; photocell; BLE
View product Request pricing
View full details

Selected for this product family

Compatible accessories

Compatible mounting, control, and installation accessories selected for this product family.

Description

JEE LED Area Light 300/240/200W Selectable 3CCT L/H Voltage Options AR09.

  • Brand: JEE
  • Product Type: LED Area Light
  • Wattage: 300/240/200W Selectable
  • Voltage: L models: AC120-277V; H models: AC277-480V.
  • Color Temperature: 3000K/4000K/5000K
  • Lumens: 51000 lm
  • CRI: 80 CRI
  • Dimming: 0-10V
  • IP Rating: IP65
  • Certifications: DLC / UL
  • Warranty: 5 years
  • Configuration: Variants explicitly named with photocell base identify a base, not an installed photocell. Unqualified variants do not establish an included photocell.
  • Mounting: Mount not included.

Confirm the selected configuration and installation requirements for your project before ordering.

Ordering configurations

  • H / Photocell Base: J-AR09-300/240/200W-H-PCX-3CCT-T3 with photocell base
  • L: J-AR09-300/240/200W-L-PCX-3CCT-T3
  • L / Photocell Base: J-AR09-300/240/200W-L-PCX-3CCT-T3 with photocell base

The selected SKU determines voltage and whether a photocell base is provided. A base is not a photocell. Mounting brackets shown in family images are not included.

Pricing unit: one listed item of the selected SKU. Use the price displayed for the selected SKU; prices differ by variant. This is the pricing basis, not a shipping or minimum-order quantity.

Image reference: The slipfitter illustration shows an optional AR09 family mounting configuration. It is not an image of every offered voltage, wattage or photocell-base variant, and does not mean the pictured mount or controls are included.
