Wattage
160.0, 190.0, 220.0
Description

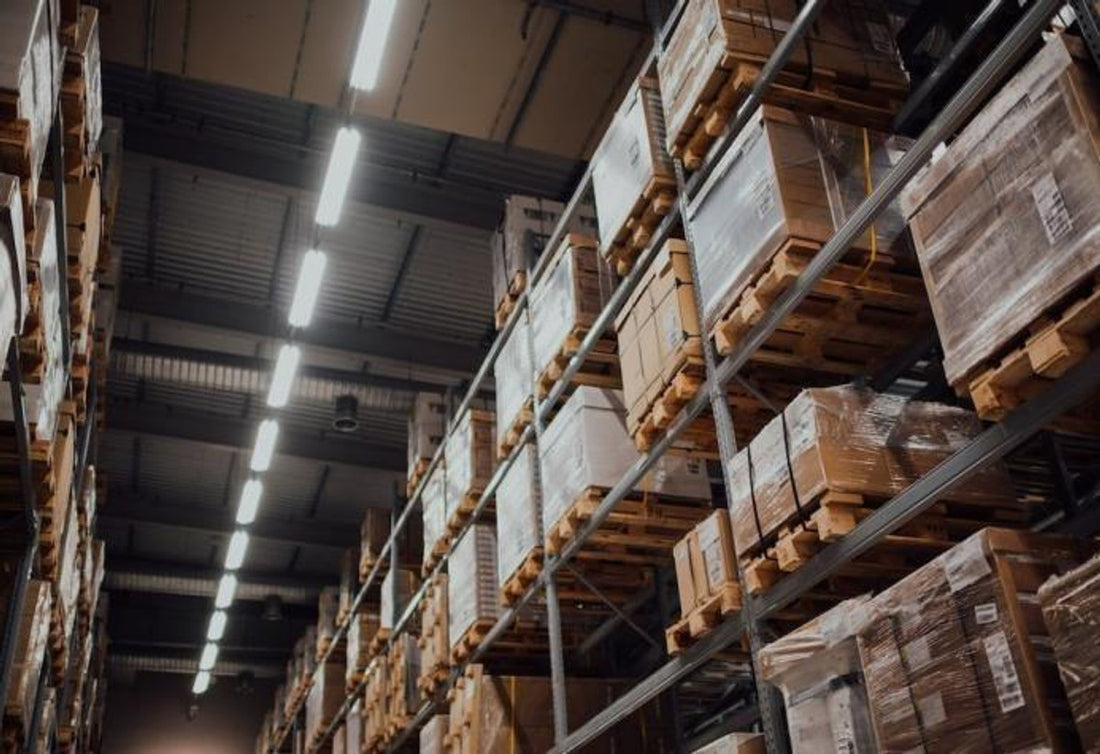

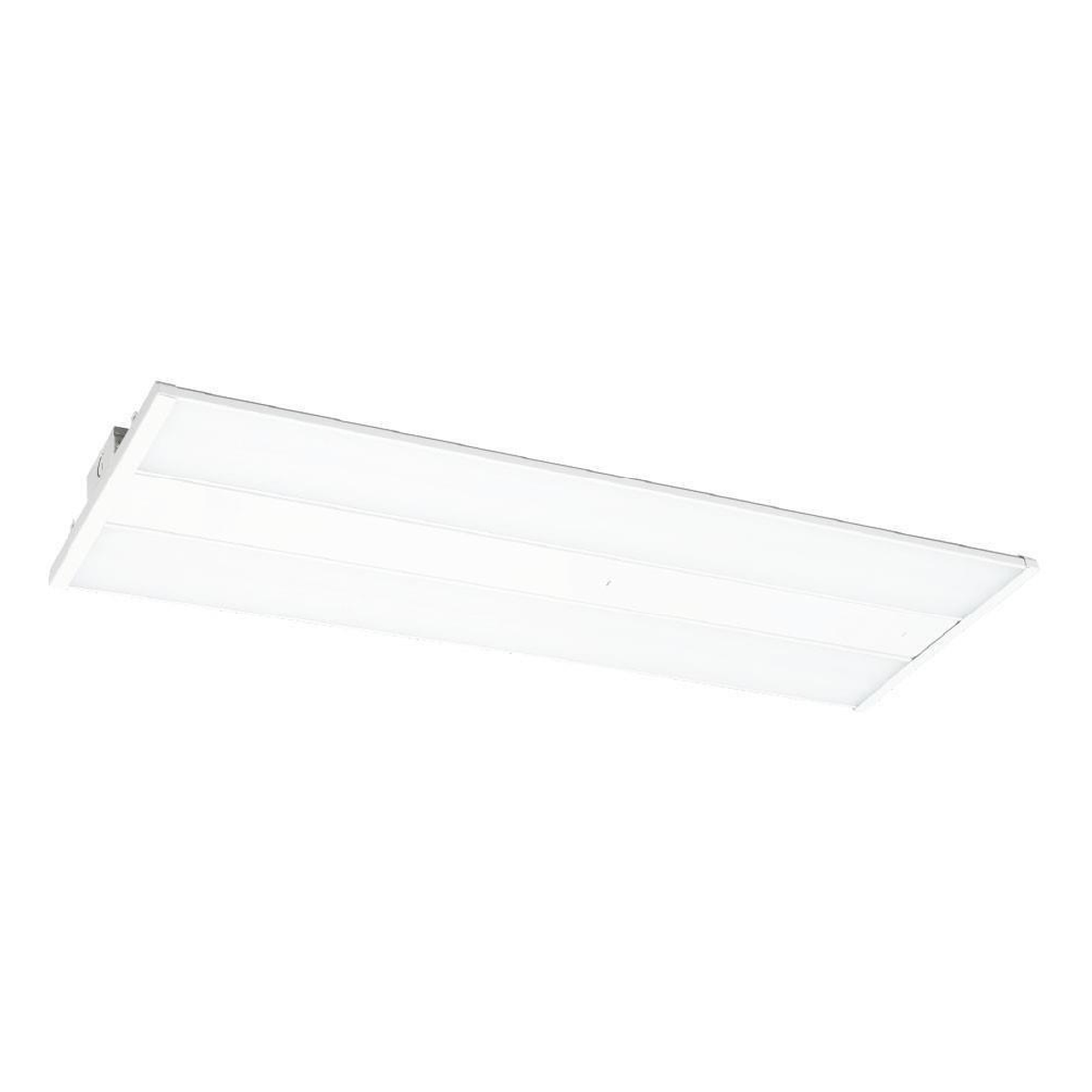

Honya 4-foot LED linear high bay with selectable 160/190/220W output and selectable 3500K, 4000K, or 5000K color temperature. Designed for large, high-ceiling indoor spaces such as warehouses, distribution areas, manufacturing floors, retail areas, and gymnasiums.
Specifications
- Model: HY-LHB-220W4FT-H-3W3CCT
- Length: 4 ft
- Wattage: 160/190/220W selectable
- Maximum light output: 30,800 lumens at 220W
- Color temperature: 3500K/4000K/5000K selectable
- Input voltage: 120-277V AC
- Dimming: 0-10V
- CRI: >80
- Power factor: ≥0.9
- Beam angle: 110°
- Environment: IP20; suitable for damp locations
- Operating temperature: -40°F to 122°F
- Recommended installation height: 16-26 ft
- Included: Hook and chain
- Lumen maintenance: More than 70% at 50,000+ hours
Specifications
CCT Options
3500, 4000, 5000
Max Lumen Output
30,800 lm
CRI
80
Selected Variant
- Part #
- HY-LHB-220W4FT-H-3W3CCT
Performance
- Wattage
- 160.0, 190.0, 220.0
- Lumen Output
- 30,800 lm
- CCT Options
- 3500, 4000, 5000
- CRI
- 80
- Beam Angle
- 110°
- Rated Life
- 50000
Electrical
- Input Voltage
- 120-277V AC
- Voltage Range
- 120 - 277V
- Dimming Type
- 0-10V
- Power Factor
- ≥0.9
Build & Ratings
- IP Rating
- IP20
Certification
No certification data available for this product.
