How to Choose LED Wall Packs for Commercial Exteriors
To choose LED wall packs for a commercial exterior, start with the wall location, mounting height, coverage area, and the amount of light needed at the ground. Then narrow the fixture by cutoff style, lumen output, CCT, voltage, controls, weather rating, and any DLC or utility paperwork requirements.
For contractors and facility buyers, the main goal is simple: light the useful area without creating glare, light trespass, or a fixture mismatch. A wall pack on a loading door does not need the same output or beam pattern as a wall pack lighting a long building perimeter.
Quick Decision Checklist
- Identify the application first: entrance, walkway, service door, loading area, alley, side wall, or general perimeter.
- Confirm mounting height and wall position before choosing lumen output.
- Use lumens and beam direction for brightness decisions, not wattage alone.
- Choose the cutoff style based on where the light should go and where it should not go.
- Match CCT to the site: 3000K for warmer exterior appearance, 4000K for balanced visibility, or 5000K for higher-visibility work and security areas.
- Verify input voltage, especially on commercial sites with 120-277V or 100-277V requirements.
- Check controls: photocell, motion sensor compatibility, 0-10V dimming, or external control strategy.
- Review IP rating, safety listing, DLC status, warranty, and utility requirements before ordering.
Start With the Wall Location
Start with the space, not the fixture. A wall pack is usually mounted to the exterior wall of a building and throws light down, out, or both. That makes it useful for walkways, back doors, side yards, service lanes, loading zones, and parking-adjacent walls.
The mounting location decides most of the spec. A fixture mounted above a person door may need a compact mini wall pack. A fixture mounted higher on a warehouse wall may need more lumen output and a wider forward throw. A wall near a property line may need tighter glare control than a wall facing an open service yard.
Before comparing products, confirm:
| Site detail | Why it matters |
|---|---|
| Mounting height | Higher mounting usually needs more output or a different distribution. |
| Area to light | Doors, lanes, walkways, and parking edges need different coverage. |
| Nearby property line | Helps decide whether full cutoff or tighter aiming is needed. |
| Existing fixture footprint | Affects retrofit labor, junction box coverage, and wall appearance. |
| Operating schedule | Helps decide if a photocell, dimming, or controls are useful. |
| Utility or owner standards | May require DLC listing, submittals, or specific CCT limits. |
Choose the Right Cutoff and Beam Style
Wall packs are not all aimed the same way. Some are made for forward throw. Some are full cutoff, which keeps the light directed more tightly downward. Some adjustable wall packs let the installer change the angle for the site.
Use the cutoff style to control where the light lands.
| Wall pack style | Best fit | Watch for |
|---|---|---|
| Full cutoff wall pack | Entrances, perimeter walls, and sites where glare or light trespass needs more control. | May not throw as far forward as a non-cutoff style. |
| Adjustable wall pack | Jobs where the wall position or target area is uncertain until installation. | Confirm aiming, mounting, and controls before ordering. |
| Standard forward-throw wall pack | General exterior walls, loading areas, and open service areas. | Can create glare or spill if output is too high for the site. |
| Mini wall pack | Doors, smaller exterior walls, and tight mounting areas. | Not the right fit for large perimeter coverage. |
If the project is near neighboring buildings, residential areas, signage, windows, or local lighting restrictions, keep the wording cautious and verify local requirements before ordering. A DLC or safety listing does not automatically mean a fixture satisfies every local exterior-lighting rule.
Size the Fixture by Lumens, Not Just Watts
Wattage tells you power input. Lumens tell you light output. For LED wall packs, contractors should compare lumen output, beam direction, and mounting height together instead of using wattage as the main brightness measure.
Selectable wattage products are useful because the same fixture family can cover multiple locations on a job. For example, a lower setting may work near a person door, while a higher setting may be needed along a wider service lane. That can simplify ordering when a project has several exterior wall conditions.
Do not assume a one-for-one replacement based only on the old HID wattage. Existing metal halide or high-pressure sodium fixtures may have poor optics, old lamps, dirty lenses, or different light distribution. For larger retrofits, use photometric layout support or confirm the owner’s target light levels before placing the full order.
Pick CCT, Controls, Voltage, and Ratings
CCT affects how the exterior looks at night. Many commercial wall packs use selectable 3000K, 4000K, and 5000K options, which helps contractors handle mixed site requirements with fewer SKUs.
For general commercial exteriors, 4000K is often a practical middle ground. Use 3000K when the owner wants a warmer exterior appearance or when local exterior lighting expectations push warmer. Use 5000K where the job prioritizes sharper visibility around service zones, loading areas, and security-sensitive walls.
Controls matter because wall packs often run for long nighttime hours. A photocell can support dusk-to-dawn operation. 0-10V dimming can matter when fixtures tie into a control strategy. Motion controls may be useful on some sites, but compatibility should be verified before ordering.
Also check the electrical and build details:
- Input voltage: confirm 120V, 100-277V, or 120-277V compatibility.
- Dimming: confirm whether 0-10V is needed or whether non-dimmable is acceptable.
- Weather rating: review IP65, IP66, wet rating, or the product’s exterior rating.
- Certification: check UL, ETL, cULus, DLC, or DLC Premium where the project requires it.
- Documents: keep spec sheets and install guides available for submittals.
Practical Michelon Product Fit
Michelon’s Wall Packs collection is the natural starting point for this job type. It includes standard, mini, adjustable, full cutoff, and selectable-output wall pack options from Euri Lighting, JEE Lighting, and Honya Lighting.
Use the collection filters to narrow by brand, wattage, CCT, voltage, dimming type, IP rating, DLC listing, certification, beam angle, and lumen output. That matters when a bid includes multiple exterior locations and the contractor needs to avoid mixing the wrong voltage, output, or control type.
For project-sized orders, build a simple fixture schedule before requesting pricing:
| Schedule field | Example entry |
|---|---|
| Location | North service door, loading dock, east wall, rear alley |
| Quantity | Number of fixtures by location |
| Mounting height | Existing or planned height |
| Output need | Low, medium, high, or target lumen range |
| CCT | 3000K, 4000K, 5000K, or selectable |
| Controls | Photocell, 0-10V dimming, motion sensor, external controls |
| Voltage | 100-277V, 120-277V, or other site requirement |
| Listing needs | DLC, DLC Premium, UL, ETL, cULus, or owner requirement |
Recommended Wall Pack Options

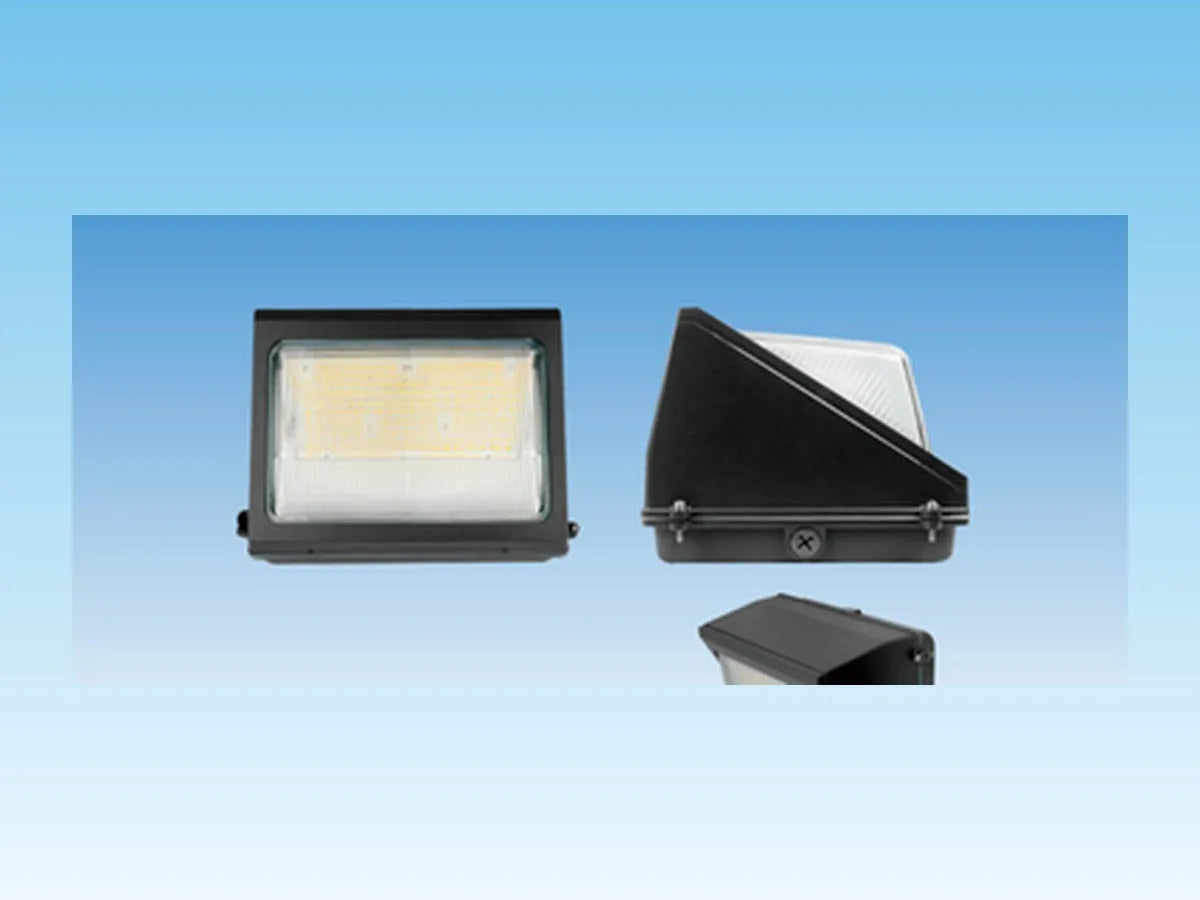

For glare-sensitive exterior walls, consider the Honya LED Full Cutoff Wall Pack 45/60/75W Selectable 3CCT 100-277V. Its full cutoff format and 45/60/75W selectable output make it a practical option for entrances, building perimeters, and exterior walls where light direction matters.

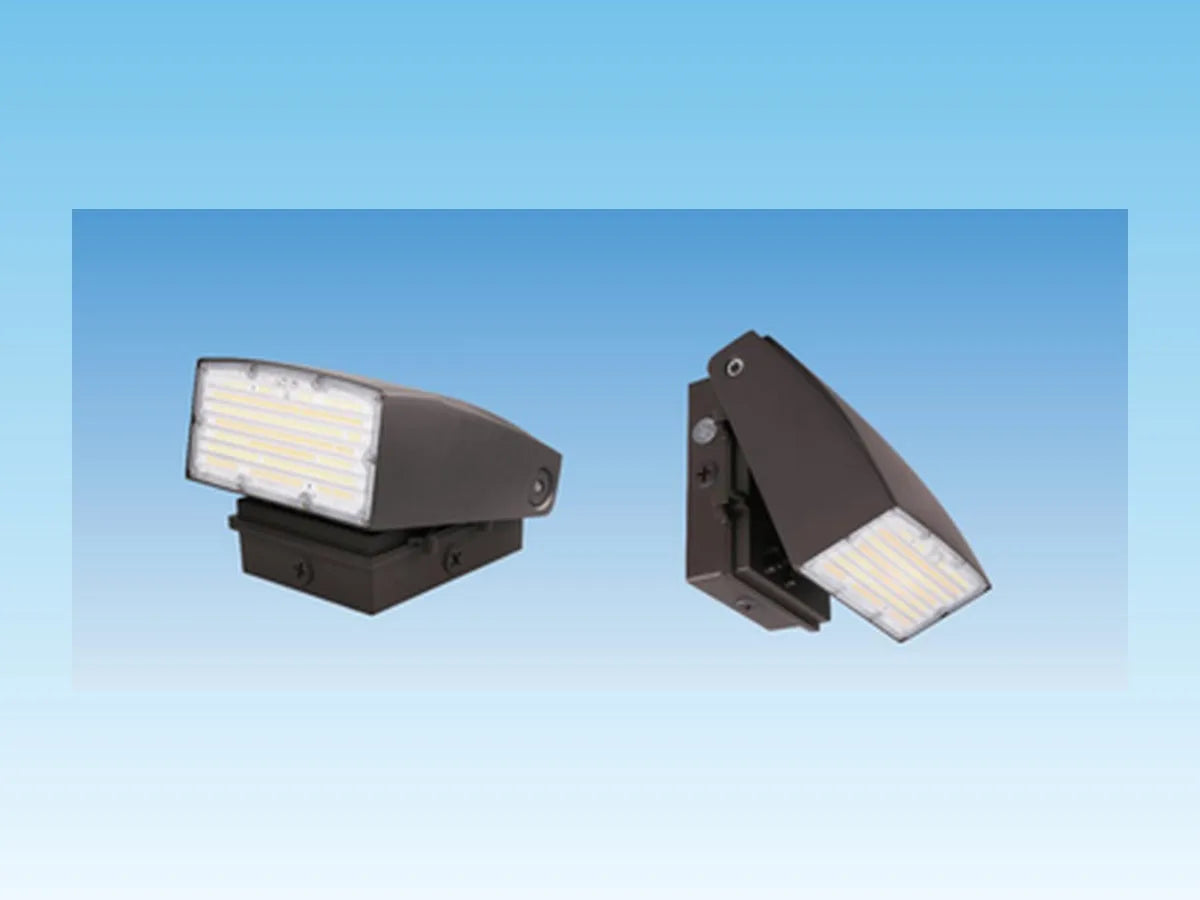

For sites where dusk-to-dawn operation is part of the plan, the Honya LED Adjustable Wall Pack 45/60/80W Selectable 3CCT 100-277V Photocell is worth reviewing. Michelon lists it with a pre-installed photocell, 0-10V dimming, IP65 rating, DLC listing, and UL certification.

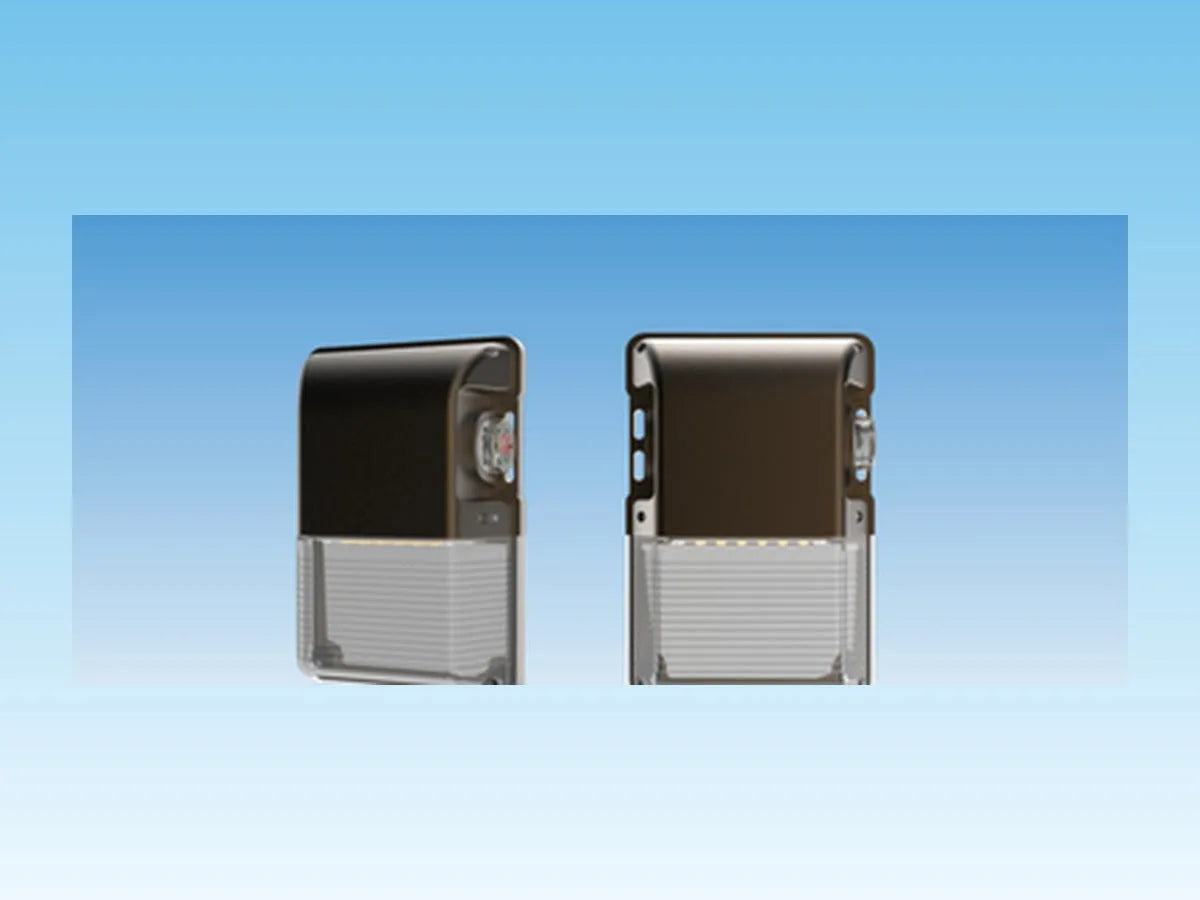

For smaller doors and tighter wall areas, the Honya LED Mini Wall Pack 15/20/25W Selectable 3CCT 100-277V Photocell gives contractors a lower-output option with selectable CCT, IP66 rating, DLC Premium listing, and a pre-installed photocell.

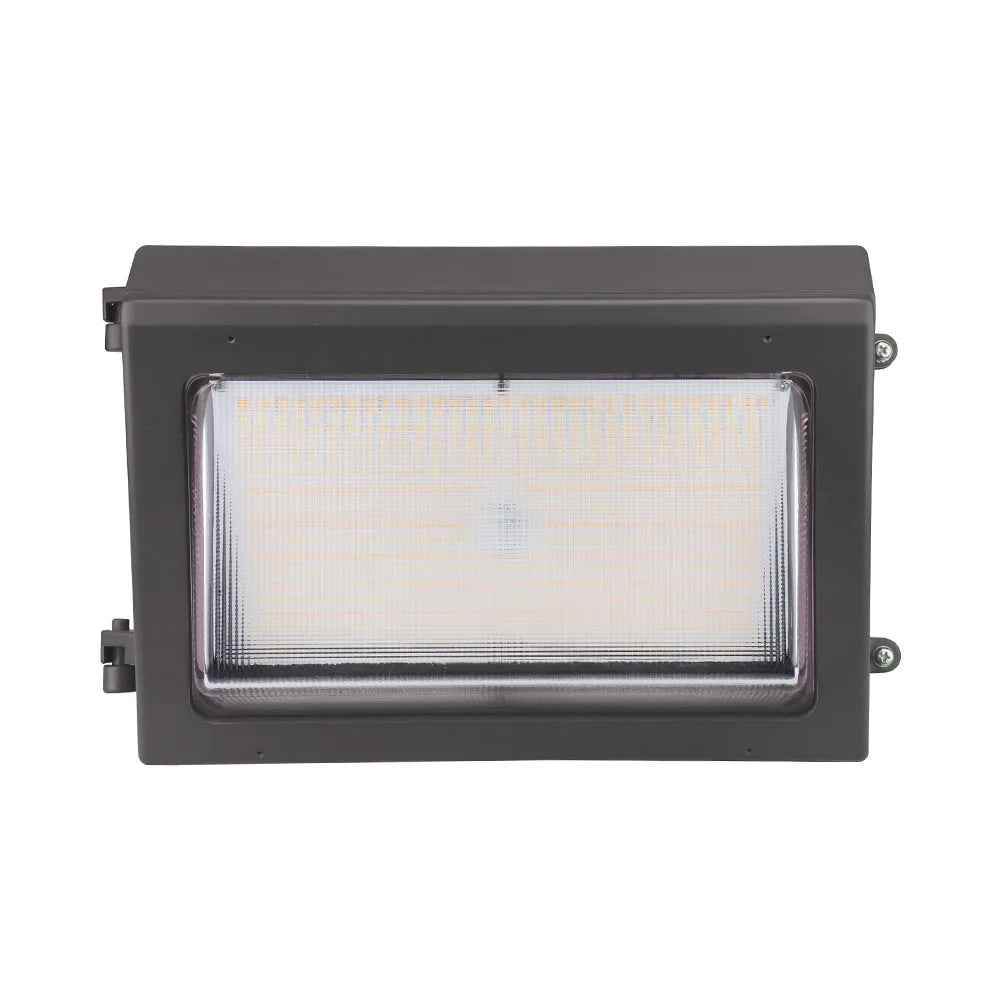

For broader SKU flexibility, review the Euri Lighting EWP Series Wall Pack. Michelon lists it with selectable 16/32/48/64/80W output, 3000K/4000K/5000K CCT choices, 120-277V input, 0-10V dimming, IP65 rating, and DLC/RoHS/UL certifications.

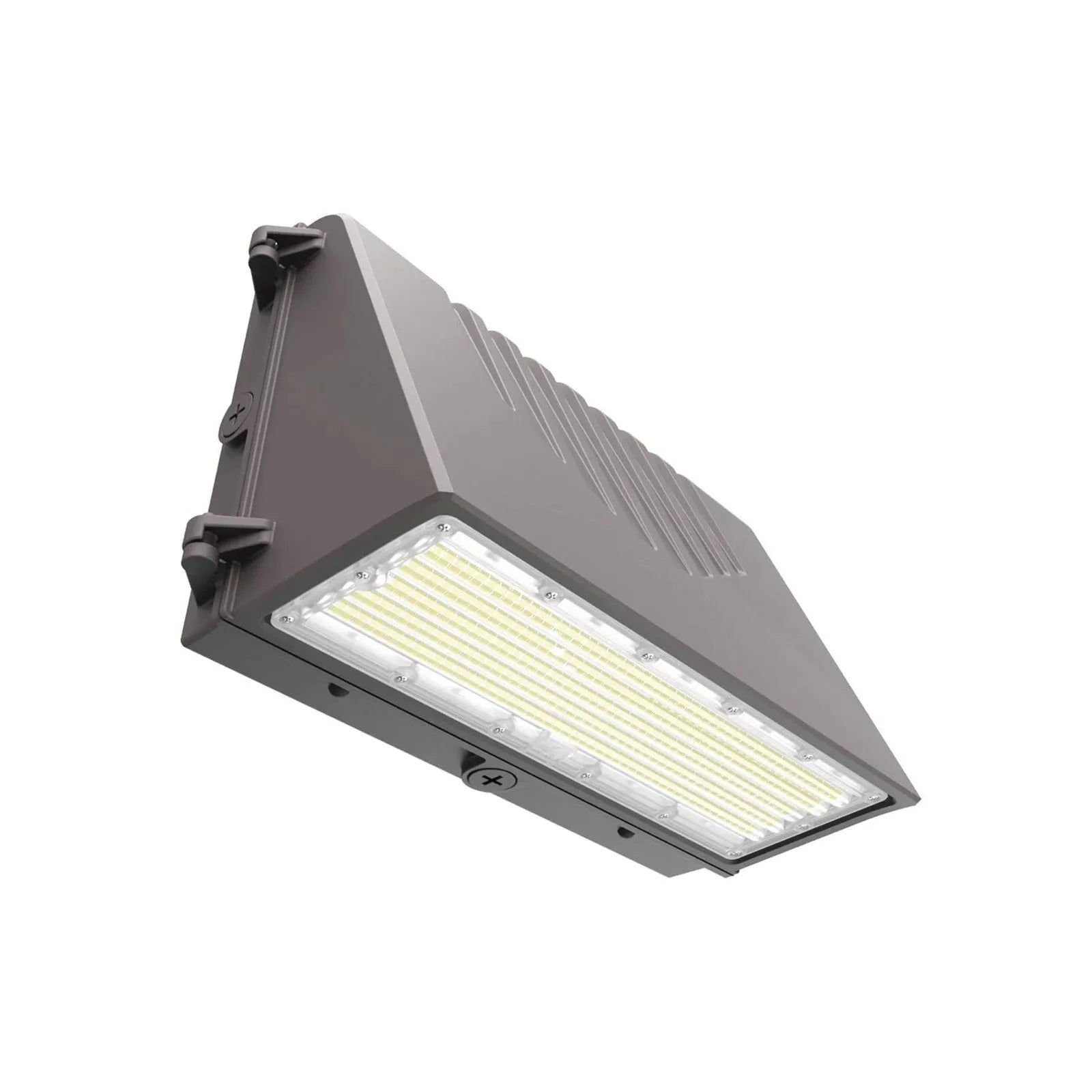

For higher-output commercial perimeter needs, the JEE LED Wall Pack 60/90/100/120W Selectable 3CCT 120-277V is a fit to compare. Michelon lists selectable wattage, 3000K/4000K/5000K CCT, 0-10V dimming, IP65 rating, DLC listing, ETL certification, and a 5-year warranty.
Project Support CTA
If the job includes multiple exterior walls, different mounting heights, or a mix of doors, loading areas, and service lanes, do not guess from one fixture alone. Shop the Wall Packs collection, build a fixture schedule, and request custom pricing when quantity, lead time, or project specs need review.
For bids and repeat commercial orders, include the product links, quantities, voltage, CCT, controls, and any required listing documents. That gives the Michelon team enough information to help match the order to the project instead of treating it like a single fixture checkout.
FAQ
What is the best LED wall pack for a commercial building?
The best LED wall pack depends on the wall location, mounting height, and target area. Use mini wall packs for smaller doors and tight spaces, full cutoff wall packs for better light control, and higher-output selectable wall packs for broader perimeter coverage.
Should commercial wall packs be 4000K or 5000K?
4000K is a practical choice for many commercial exteriors because it balances visibility and appearance. 5000K can make sense for service areas, loading zones, and security-sensitive walls where a cooler look is acceptable. Always check owner standards and local requirements before standardizing the project.
Do LED wall packs need a photocell?
Not always, but photocells are common for dusk-to-dawn exterior lighting. If the project uses a separate lighting control system, timer, motion sensor, or building automation strategy, confirm compatibility before ordering a wall pack with a built-in photocell.
Does DLC listing guarantee a rebate?
No. DLC listing may matter when rebates or utility incentives are part of the project, but eligibility depends on the utility program, product listing status, application, and paperwork. Confirm with the utility and check the current DLC Qualified Products List before promising a rebate.
Can I replace a metal halide wall pack with an LED wall pack?
Yes, in many retrofit projects, but do not size the replacement by old wattage alone. Compare lumen output, distribution, mounting height, voltage, controls, fixture footprint, and owner requirements. For larger retrofits, request support before ordering the full quantity.
